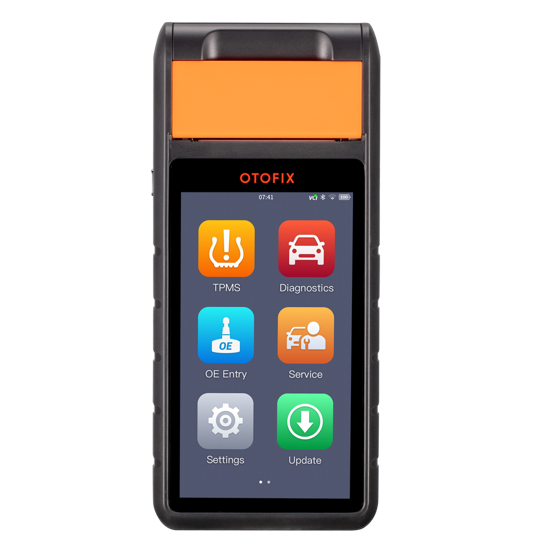

The OTOFIX BT1 is a touchscreen Battery & Electrical System tester with printer that applies an advanced battery analysis algorithm --- Adaptive Conductance.
Adaptive Conductance produces a more accurate examination of the battery’s cold-cranking ability and reserve capacity, vital to determining a battery’s true health. The diagnostic report can be customised with your personal or entity information.
>>Click here to download the Quick Guide for OTOFIX BT1 Car Battery Tester with Printer
>>Click here to check the Vehicle-Coverage for OTOFIX BT1 Car Battery Tester with Printer
Key Features:
- TOP-LEVEL ACCURACY & QUICK TEST RESULTS: Exclusive adaptive conductance algorithm
- No subscription charge
- Car Battery Tester With Printer and e-mail function to print and email customised report
- Battery load tester, car cranking, and charging system analysis.
- New battery registration to ECU
- Auto VIN entry, auto-detection of battery specifications through the built-in camera
OTOFIX BT1 Car Battery Tester With Printer Function Demonstration Videos:
1 OTOFIX BT1 CAR BATTERY TESTER In Vehicle Car Battery Test
2 OTOFIX BT1 CAR BATTERY TESTER Out Vehicle Car Battery Test
3 OTOFIX BT1 CAR BATTERY RESET
4 OTOFIX BT1 CAR BATTERY TESTER -- CAR DIAGNOSIS
5 OTOFIX BT1 CAR BATTERY TESTER -- CAR BATTERY REPLACEMENT
6 FULL FUNCTION DEMONSTRATION OTOFIX BT1 (FRENCH) + BT1 LITE BY YOUTUBERS
Specifications:
| Package Dimension (WxHxD): 38 x 31 x 12.5 cm |
| Package Weight: 2.53 kg |
| Operating System: Android 9 |
| Screen Display: 5.5" LCD Touch Screen / 720*1280 Resolution |
| Storage: 32GB |
| Connectivity: Wi-Fi (802.1.1 a/b/g/n/ac) / USB 2.0 Type-C / BT5.0+EDR |
| Camera: 8MP |
| Input Voltage: 5V DC |
| Working Current: < 450 mA at 7.7 V DC |
| Internal Battery: 7.7V, 3000 mAh |
| CCA Range: 100 to 3000 A |
| Voltage Range: 1.5 to 36 V |
| Operating Temperature: 0° to 45°C |
| Storage Temperature: -10° to 60°C |
